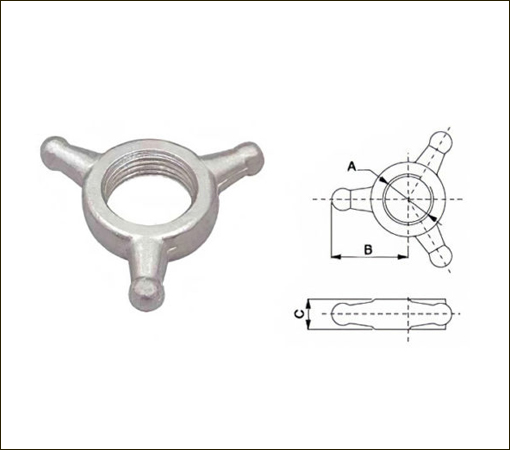

TOP LINK LOCKING COLLARS (FORGED)
CODE	A (mm)	DIA. B (mm)	C (mm)	THREAD D (mm)
NETLLC65055	25	34	12	22 x 2.5
NETLLC65056	25	34	12	24 x 25
NETLLC65057	25	34	12	24 X 3
NETLLC65058	40	40	18	27 x 3
NETLLC65059	40	40	18	30 x 3
NETLLC65060	40	40	18	30 x 3.5
NETLLC65061	48	48	23	36 x 3
NETLLC65062	50	54	28	40 x 3

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.

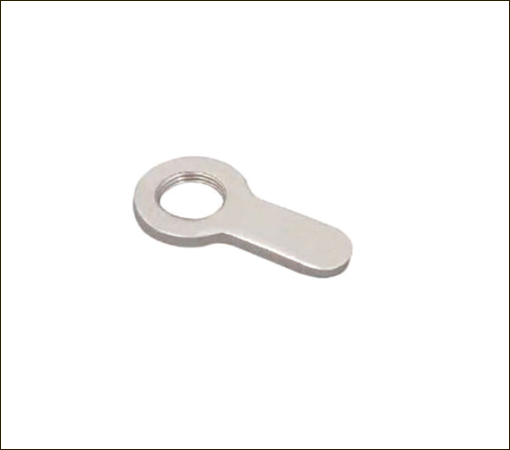

TOP LINK LOCKING COLLARS
CODE	A (mm)	DIA. B (mm)	C (mm)	THREAD D (mm)
NETLLC7507	45	60	6	22 x 2.5
NETLLC7508	45	60	6	24 x 25
NETLLC7509	45	60	6	24 x 3
NETLLC7510	45	60	6	27 x 3
NETLLC7511	45	60	6	30 x 3
NETLLC7512	45	60	6	30 x 3.5
NETLLC7513	60	88	10	36 x 3
NETLLC7514	60	88	10	40 x 3

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.

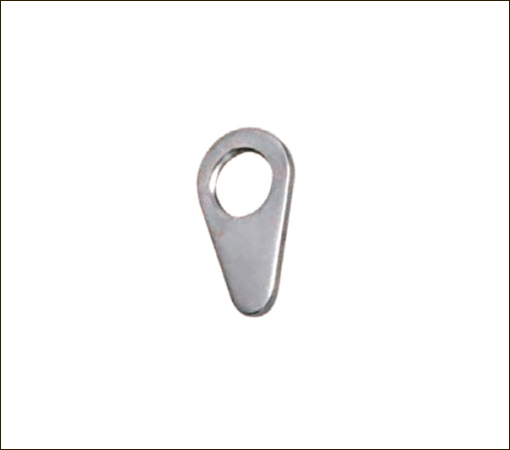

TOP LINK LOCKING COLLARS
CODE	A (mm)	DIA. B (mm)	C (mm)	THREAD D (mm)
NETLLC7598	45	60	6	22 x 2.5
NETLLC7599	45	60	6	24 x 25
NETLLC7600	45	60	6	24 x 3
NETLLC7601	45	60	6	27 x 3
NETLLC7602	45	60	6	30 x 3
NETLLC7603	45	60	6	30 x 3.5
NETLLC7604	60	88	10	36 x 3
NETLLC7605	60	88	10	40 x 3

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.
