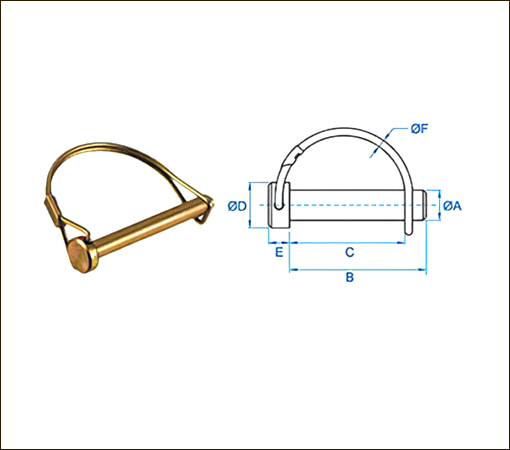

SHAFT LOCKING PIN / PTO (ROUND)
CODE	DIA. A(mm)	B (mm)	C (mm)	DIA. D (mm)	E (mm)	F (mm)
NESLP2390	6	60	50	12	6	2.3
NESLP2391	6	67	57	12	6	2.3
NESLP2392	8	45	38	15	7	2.3
NESLP2393	8	70	60	15	7	2.3
NESLP2394	9.5	67	57	16	7.5	2.3
NESLP2395	10	45	38	15	7	2.3
NESLP2396	10	70	60	15	8.5	2.3
NESLP2397	11	99	89	19	10	2.3

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.

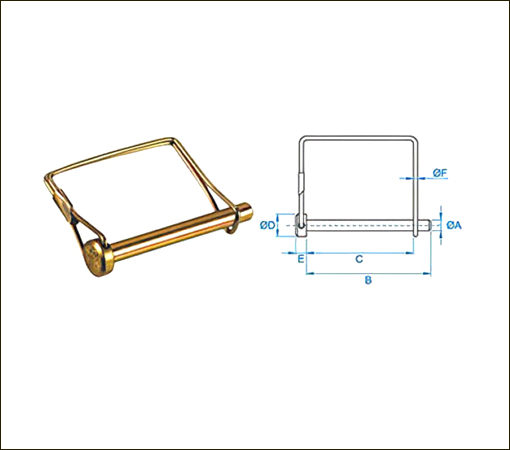

SHAFT LOCKING PIN / PTO PIN (SQUARE)
CODE	DIA. A(mm)	B (mm)	C (mm)	DIA. D (mm)	E (mm)	F (mm)
NESLP3901	4.5	46	38	10	5	2.3
NESLP3902	6	67	57	12	6	2.3
NESLP3903	8	70	63	15	7	2.3
NESLP3904	10	90	80	18	8	2.3
NESLP3905	12	75	67	20	10	2.3

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.

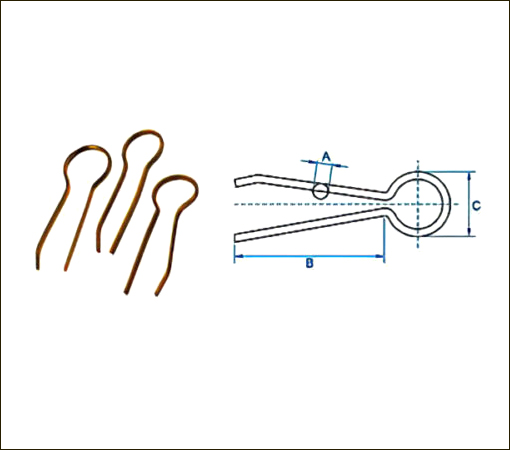

CLIP PINS
CODE	A (mm)	B (mm)	C (mm)
NECP9876	3X1.5	38	17
NECP9888	5X2.5	56	27

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.
