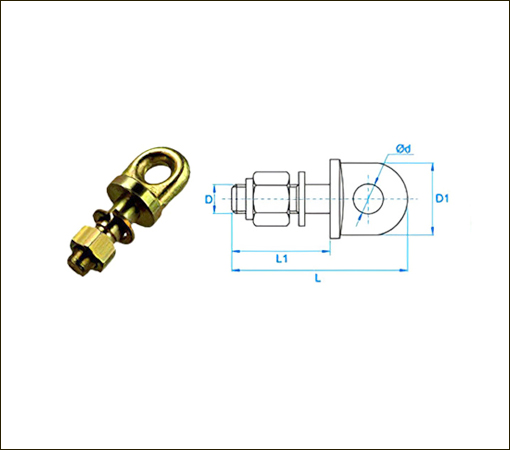

EYE END
CODE	D	L	DIA-d	D1	L1
NEEEA15	M16X1.5	80	15	36	43
NEEEA16	M18X1.5	80	15	36	43
NEEEA17	M20X2.5	100	18	40	60
NEEEA18	M20X2.5	125	20	53	65
NEEEA19	M24X2	125	24	53	65

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.

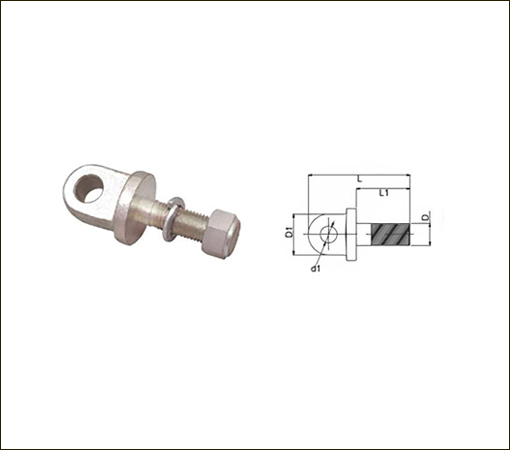

EYE END (Type B)
CODE	D	L	DIA-d	D1	L1
NEEEB20	M20X2.5	125	20	42	65
NEEEB21	M24X2	125	24	42	65

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.
